Interface (triggering)

The interface is built with React and uses Vite as the build tool. The build files are compiled inside the public folder of the main process.

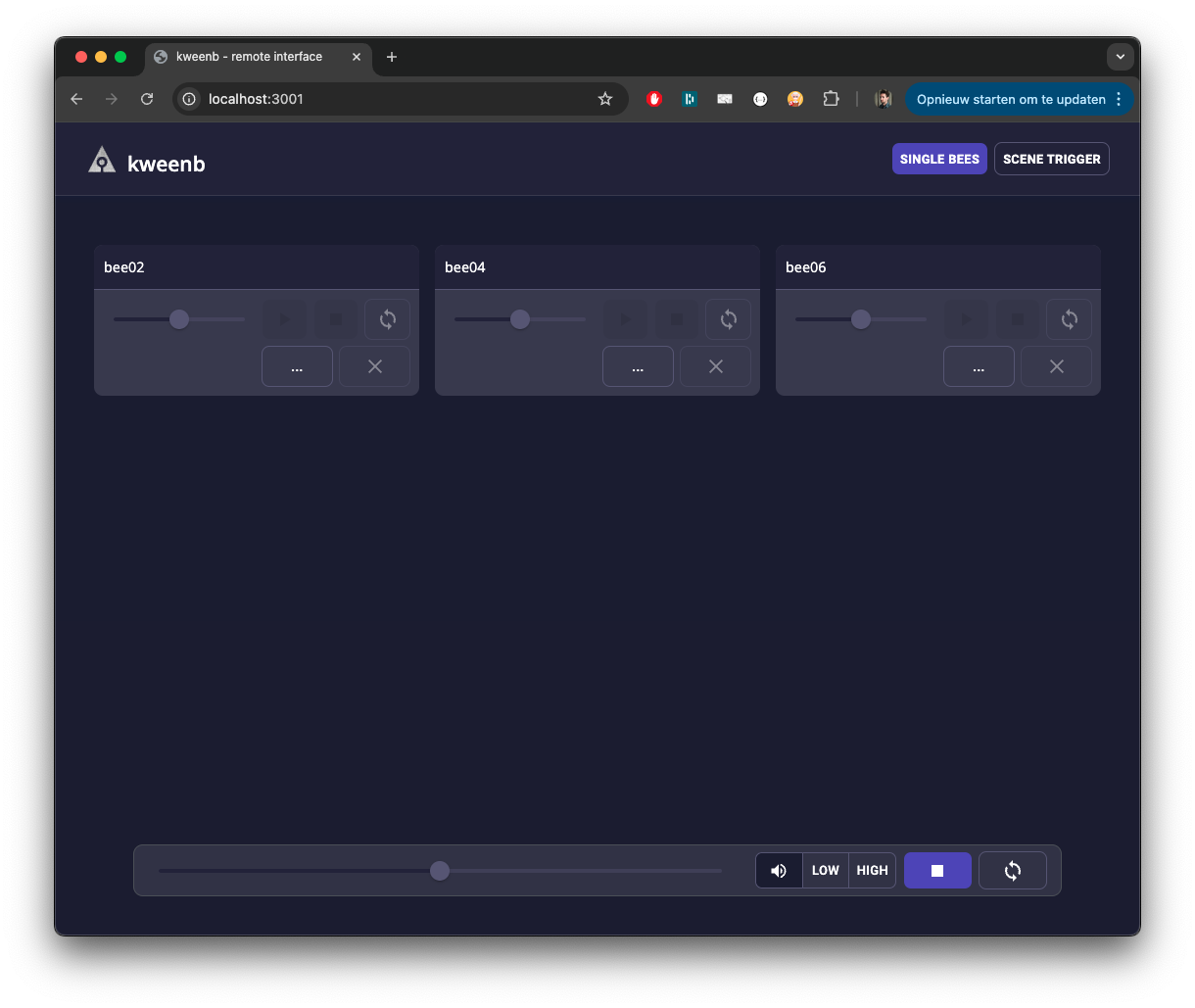

The interface for triggering of kweenb

We can use this responsive interface (it will work on mobile phones and tablets) to:

  • Trigger scenes on a single bee
  • Trigger scenes on all the bees
  • Setting audio parameters such as volume, high, low frequencies
  • Can loop audio files

React​

We use React as the frontend framework. In the components folder, you'll find all the components related to the Electron application. Additionally, there is a shared folder containing components that are reused across other projects, such as the renderer.

Layout​

The layout components are used to construct the application's layout, including navigation and the sidebar. Each page has a dedicated folder (e.g., Audio for triggering, Positioning for positioning, etc.).

Material UI​

We use Material UI as the component library, integrating its existing components to build our React components.

Vite​

We use Vite as a server, in the development it spins up a webserver with hot reloading. Also, the current builded version of the interface will be served on the port specified in the constants file.

Socket IO​

The interface communicates with kweenb via websockets. We use SocketIO as the library that handles the communication and messages.
